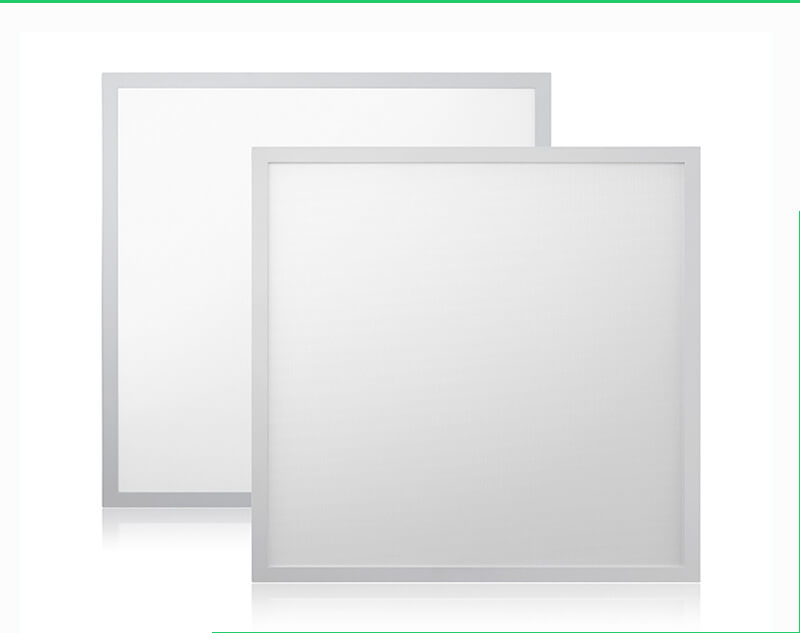

LED Panel Light
Back-lit, 150lm/W, UGR<19
Model PL01 -

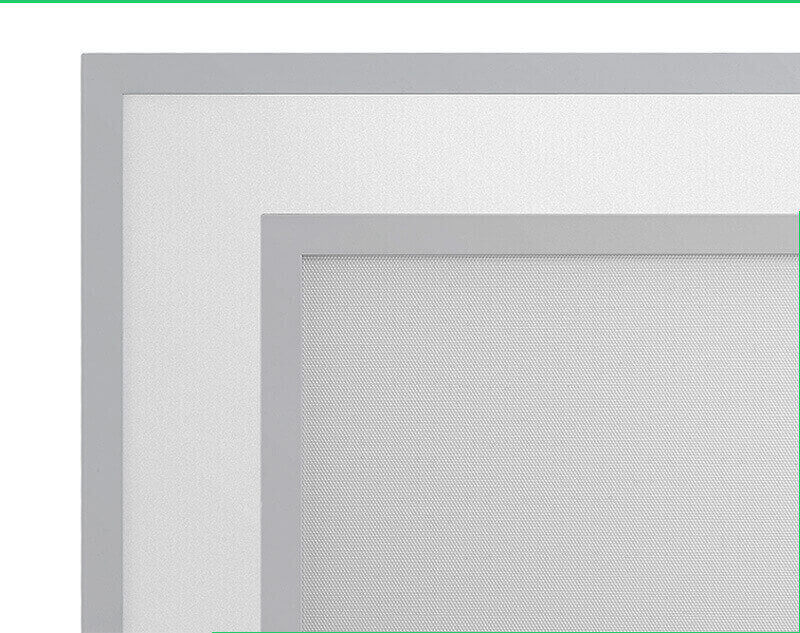

LED Panel Light
Side Lighting, 150lm/W, UGR<19
Model PL02 -
LED Tube Light
T8, Φ26mm, G13, 200lm/W
Model T8-TL01 -
LED Tube Light
T6-Φ20mm, T85-Φ26mm, G5
Model T6-TL01
Datasheet Of LED Panel Light
| Size: | 2FT*2FT |
1FT*4FT |
2FT*4FT |
||
|---|---|---|---|---|---|
| Rated Power: | 36W |
36W |
72W |
||
| Lumen: | 5400LM |
5400LM |
10800LM |
||
| Lumen Efficacy: | 150lm/W |
||||
| LED Chip: | SMD2835 |
||||
| CRI: | Ra≥80 |
||||
| CCT Color: | 3000K/4000K/5000K/6000K (Optional Switch CCT Color) |
||||
| Beam Angle: | 120° |
||||
| Input Voltage: | AC200-240V, 50/60Hz (AC100-277V Optional) |
||||
| Flicker: | Non Flicker |
||||
| Power Factor: | PF≥0.92 |
||||
| IP Rating: | IP20 |
||||
| Housing Color: | White Color |
||||
| Function Optional: | DALI Dimmer, 1-10V/Triac Dimmer |
||||
| Material: | Aluminum Frame, PS Diffuser |
||||
| Working Temp: | -30°C to +45°C |
||||
| Working Humidity: | 10% to 90% RH |
||||
| Lifespan: | 50,000H |
||||
| Warranty: | 5 Years |
||||
Application of LED Panel Light
LED panel lights are versatile, used for bright, energy-efficient, uniform lighting in offices, schools, hospitals, and retail spaces, enhancing productivity and ambiance, but also fit homes, warehouses, and even specialized uses like film studios or backlighting due to adjustable features like color temperature and dimming for general, task, or decorative lighting.
- • Commercial: Offices, conference rooms, retail stores, malls, libraries, hotels (uniform glare-free light for focus and atmosphere).
- • Healthcare & Education: Bright, reliable lighting in hospitals, labs, schools, and libraries.
- • Parking Garages & Car Parks: Safe, low-maintenance lighting.
- • Kitchens: Under-cabinet, task lighting.
- • Living Areas: Ambient lighting, replacing older ceiling fixtures.
- • Accent Lighting: In furniture, displays, or decorative setups.
