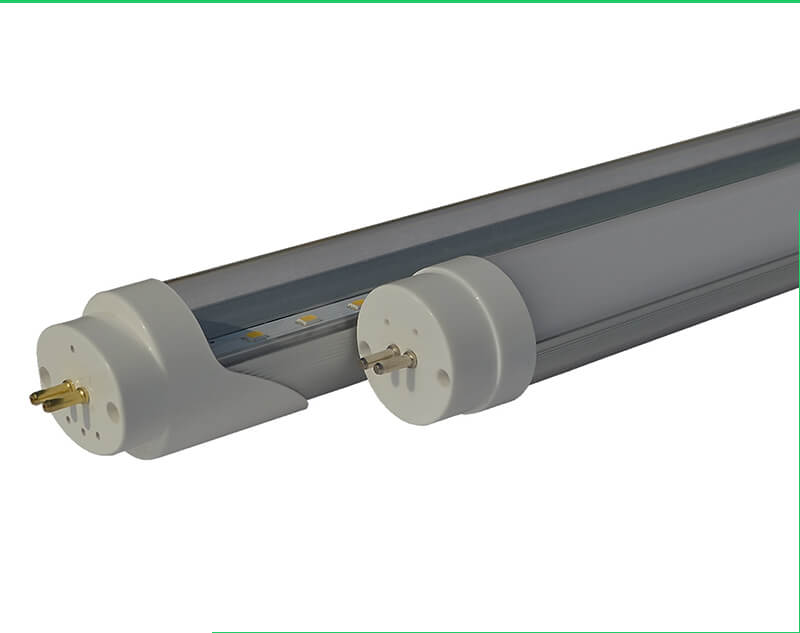

LED Tube Light
T8, Φ26mm, G13, 200lm/W
Model T8-TL01 -

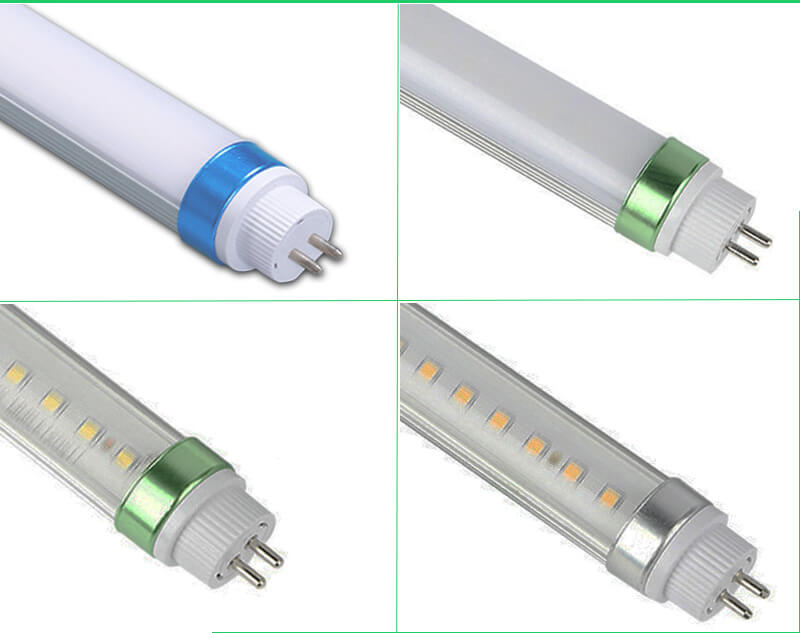

LED Tube Light
T6-Φ20mm, T85-Φ26mm, G5
Model T6-TL01 -
LED Panel Light
Back-lit, 150lm/W, UGR<19
Model PL01 -
LED Panel Light
Side Lighting, 150lm/W, UGR<19
Model PL02
Datasheet Of LED Tube Light
| Length: | 2FT |
4FT |
5FT |
||
|---|---|---|---|---|---|
| Rated Power: | 9W |
18W |
25W |
||
| Lumen: | 1800LM |
3600LM |
5000LM |
||
| Lumen Efficacy: | 200lm/W |
||||
| LED Chip: | SMD2835 |
||||
| CRI: | Ra≥80 |
||||
| CCT Color: | 3000K/4000K/5000K/6000K |
||||
| Base: | G5 Pins |
||||
| Diameter: | T6-Φ20MM, T85-Φ26MM |
||||
| Beam Angle: | 120° |
||||
| Input Voltage: | AC200-240V, 50/60Hz (AC100-277V Optional) |
||||
| Flicker: | Non Flicker |
||||
| Power Factor: | PF≥0.92 |
||||
| IP Rating: | IP20 |
||||
| Housing Color: | Silver Color |
||||
| Function Optional: | KVG&EVG Compatible, Microwave Sensor, 1-10V/Triac Dimmer |
||||
| Material: | Half Aluminum + Half PC Cover |
||||
| Working Temp: | -30°C to +45°C |
||||
| Working Humidity: | 10% to 90% RH |
||||
| Lifespan: | 50,000H |
||||
| Warranty: | 5 Years |
||||
Application of LED Tube Light
LED tube lights are versatile, energy-efficient replacements for traditional tubes, used widely in commercial/industrial settings (offices, warehouses, factories, retail, garages, hospitals, schools) for bright, general lighting and in residential spaces (kitchens, hallways, under cabinets) for ambient or accent lighting, offering flexibility in brightness (dimming) and color (warm to cool) to suit tasks or create ambiance, from daylight-matched for art studios to cozy warm tones for homes.
- • Offices & Retail: General illumination, enhancing product visibility.
- • Healthcare & Education: Bright, reliable lighting in hospitals, labs, schools, and libraries.
- • Parking Garages & Car Parks: Safe, low-maintenance lighting.
- • Kitchens: Under-cabinet, task lighting.
- • Living Areas: Ambient lighting, replacing older ceiling fixtures.
- • Accent Lighting: In furniture, displays, or decorative setups.
