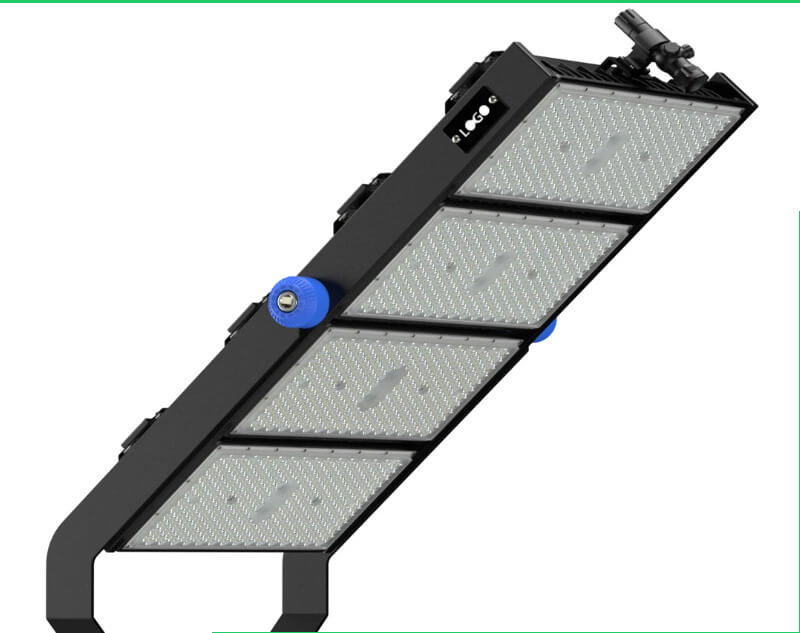

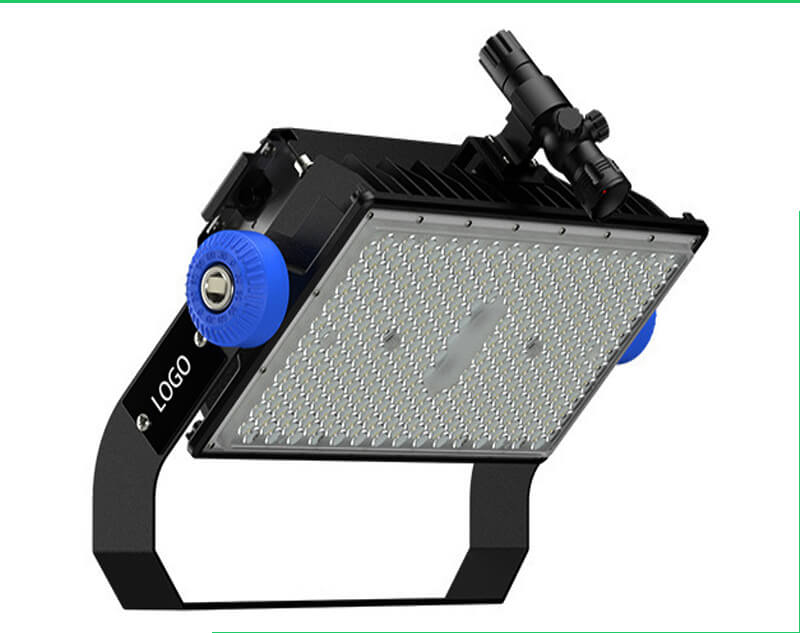

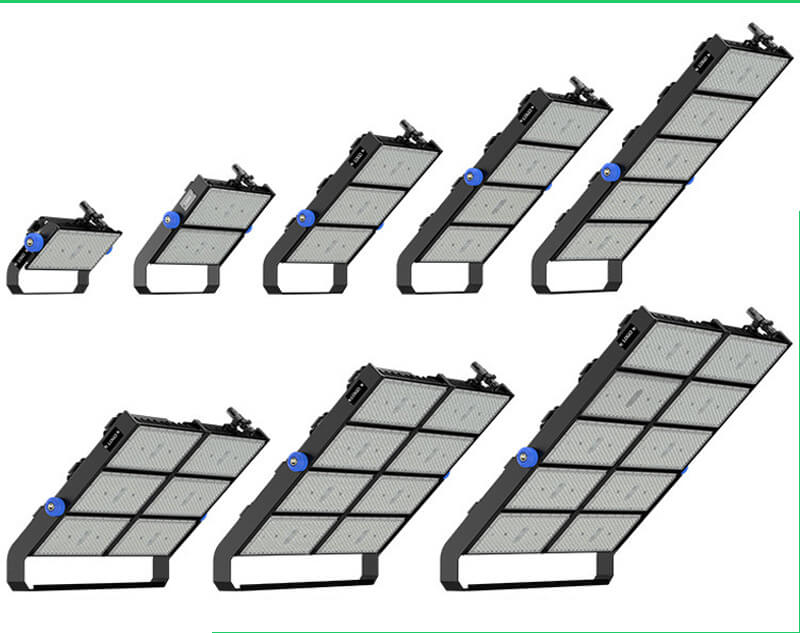

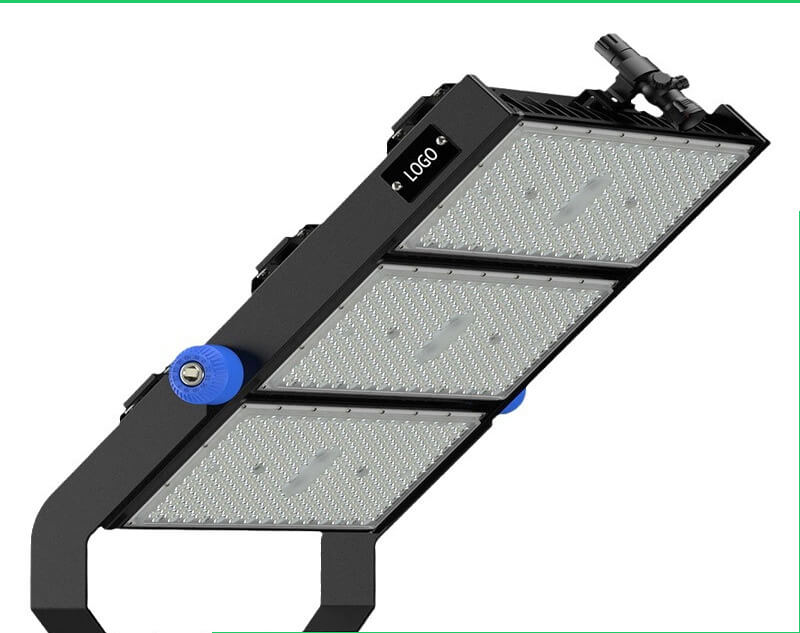

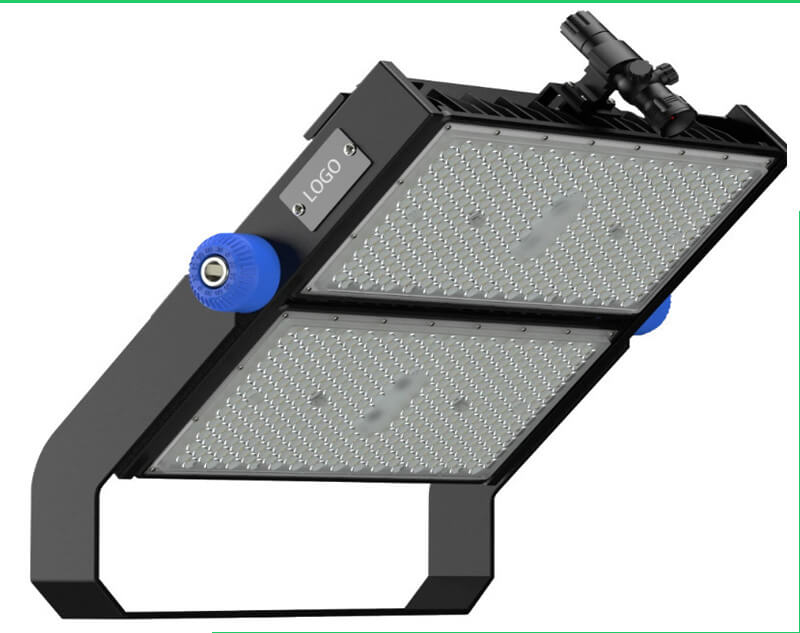

LED Stadium Light
500W, 1000W, 1500W, 2000W, IP66
Model STA01 -
LED Stadium Light
500W, 1000W, 1200W, IP66
Model STA02 -
LED Stadium Light
500W, 1000W, 1500W, 2000W, IP66
Model STA03 -
LED Tunnel Light
400W, IP66, Lumileds 5050
Model TN01
Datasheet Of LED Stadium Light
| Rated Power: | 500W |
1000W |
1500W |
2000W |
|
|---|---|---|---|---|---|
| Lumens: | 80000LM |
160000LM |
240000LM |
320000LM |
|
| Lumen Efficacy: | 160lm/W |
||||
| LED Chip: | Lumileds 5050 |
||||
| CRI: | Ra≥70 (Ra≥80 Optional) |
||||
| CCT Color: | 3000K/4000K/6000K |
||||
| Beam Angle: | 60/90/120° |
||||
| Input Voltage: | AC200-240V, 50/60Hz (AC100-277V Optional) |
||||
| LED Driver: | Meanwell Driver, Philips Driver, Lifud Driver |
||||
| Flicker: | Non Flicker |
||||
| Power Factor: | PF≥0.92 |
||||
| IP Rating: | IP66 |
||||
| Housing Color: | Black Color |
||||
| Function Optional: | 1-10V, Triac, DALI Dimmable |
||||
| Material: | Aluminum Houseing, PC Lens |
||||
| Working Temp: | -30°C to +45°C |
||||
| Working Humidity: | 10% to 90% RH |
||||
| Lifespan: | 100,000H |
||||
| Warranty: | 5 Years |
||||
Application of LED Stadium Light
LED stadium lights are used for high-powered, energy-efficient illumination in various sports venues like football, baseball, soccer, and tennis courts, providing uniform, bright, and controllable light for players and spectators, enhancing safety and experience while reducing operational costs through long life and low energy use. They replace traditional lights and offer benefits like flicker-free, high Color Rendering Index (CRI) lighting, instant on/off, and programmability for dynamic effects, crucial for professional broadcasts and varied event needs.
- • Team Sports: Football (American & Soccer), Baseball, Rugby, Lacrosse.
- • Court Sports: Basketball, Tennis, Pickleball, Badminton.
- • Track & Field: Running tracks and field event areas.
- • Raceways: Motorsports and horse racing tracks.
- • Specialized Venues: Golf courses (evening play), shooting ranges, batting cages, indoor arenas, and community sports centers.
