LED Street Light
150W, 200W, 240W, IP66
Model STR01 -
LED Street Light
150W, 200W, 240W, IP66
Model STR02 -
LED Street Light
100W, 150W, 200W, IP66
Model STR03 -

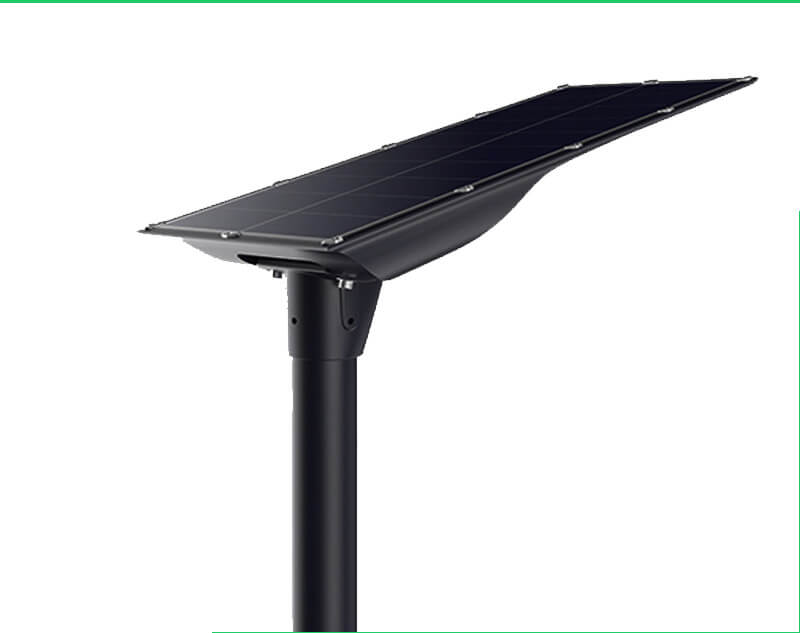

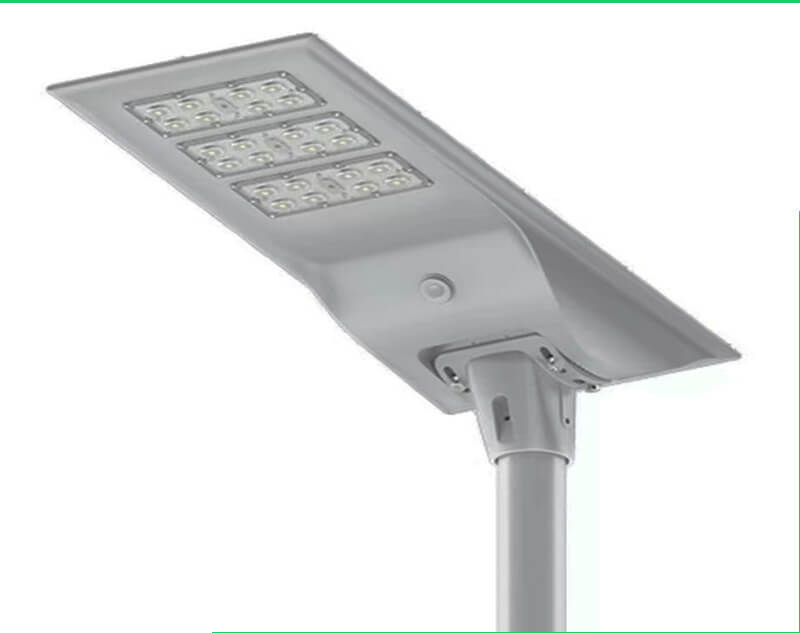

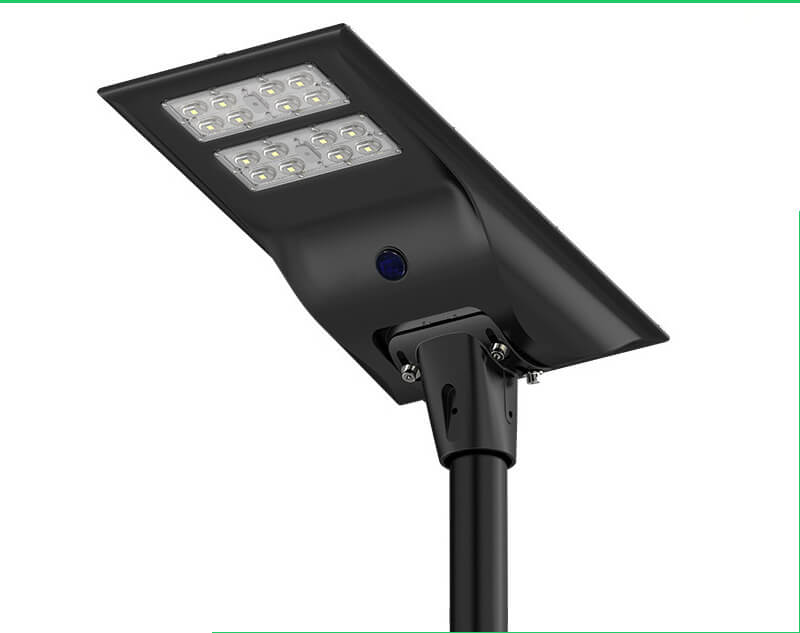

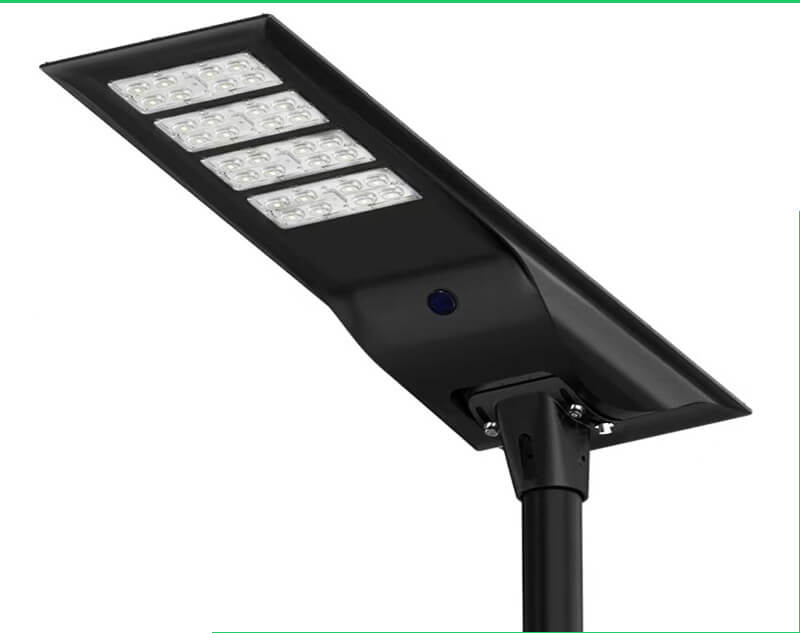

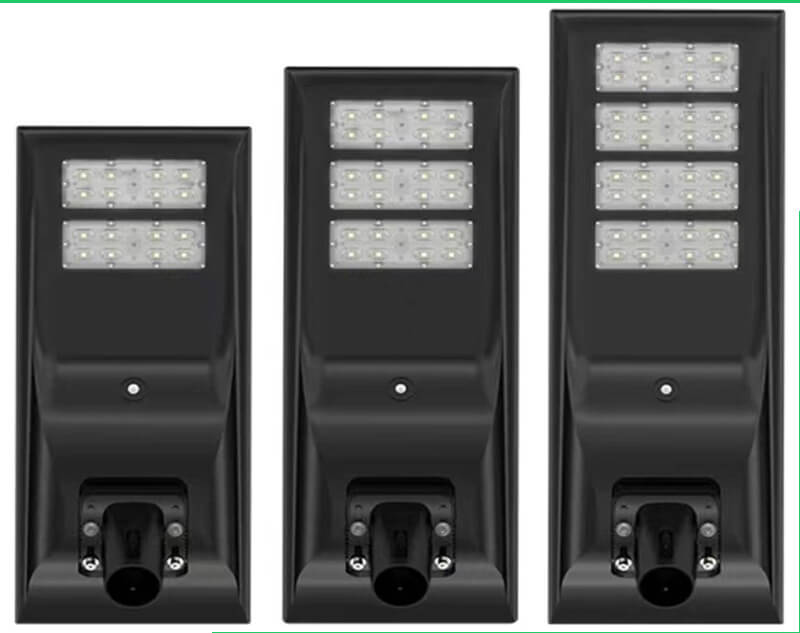

Solar LED Street Light
15W, 25W, 30W, 180lm/W, IP66
Model STR04 -
Solar LED Garden Light
15W, 25W, 30W, 180lm/W, IP66
Model GDL01
Datasheet Of Solar LED Street Light
| Rated Power: | 15W |
20W |
30W |
||
|---|---|---|---|---|---|
| Lumens: | 2700LM |
3600LM |
5400LM |
||
| Lumen Efficacy: | 180lm/W |
||||
| LED Chip: | Lumileds 5050 |
||||
| CRI: | Ra≥70 (Ra≥80 Optional) |
||||
| CCT Color: | 3000K/4000K/6000K |
||||
| Beam Angle: | 60/90/120° |
||||
| Input Voltage: | AC200-240V, 50/60Hz (AC100-277V Optional) |
||||
| LED Driver: | IC Driver |
||||
| Flicker: | Non Flicker |
||||
| Power Factor: | PF≥0.92 |
||||
| IP Rating: | IP66 |
||||
| Housing Color: | Black or White Color |
||||
| Function Optional: | Motion Sensor |
||||
| Material: | Aluminum Houseing, PC Lens |
||||
| Working Temp: | -30°C to +45°C |
||||
| Working Humidity: | 10% to 90% RH |
||||
| Lifespan: | 100,000H |
||||
| Warranty: | 5 Years |
||||
Application of Solar LED Street Light
LED street lights are used for illuminating roads, highways, residential areas, and public spaces like parks, parking lots, and walkways, offering superior energy efficiency, durability, and light quality over traditional lamps, with smart features like dimming and sensors enabling smart city integration for better safety, less pollution, and reduced energy costs.
- • Roadways & Highways: Providing uniform, bright light for high-speed traffic and main roads (M1-M6 lighting classes).
- • Urban & Residential Streets: Enhancing safety, visibility, and aesthetics with customizable white light, reducing dark spots.
- • Parking Lots & Garages: Ensuring bright, uniform illumination for security and visibility.
- • Parks & Recreational Areas: Illuminating trails, playgrounds, and public squares for safety and extended use.
- • Commercial & Industrial Zones: Improving visibility and safety for workers and visitors in factories and business districts.
- • Pedestrian Walkways & Cycle Paths: Offering clear, safe paths for foot and bike traffic (P-class lighting).
