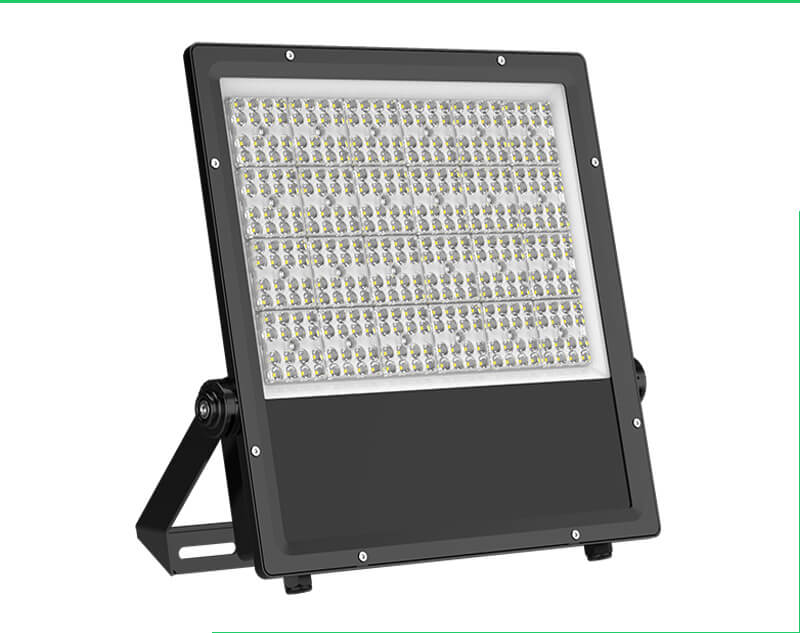

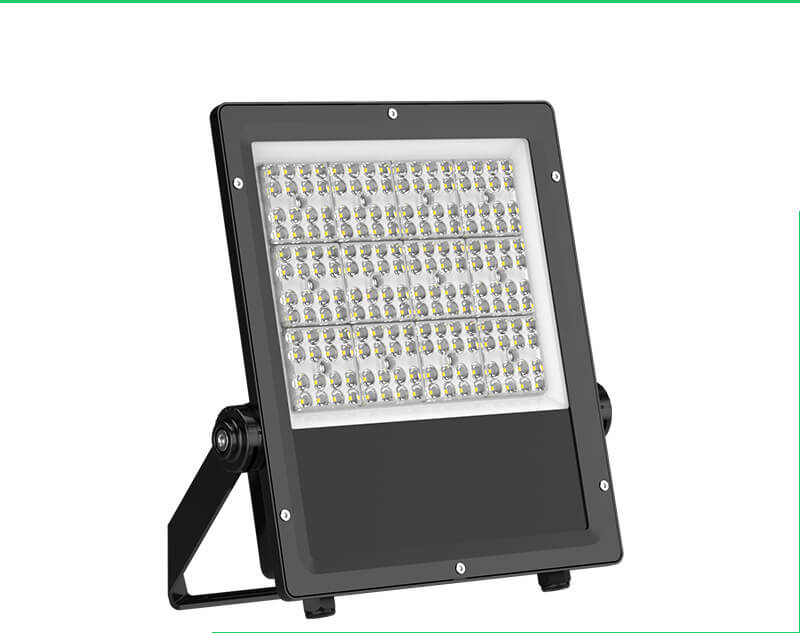

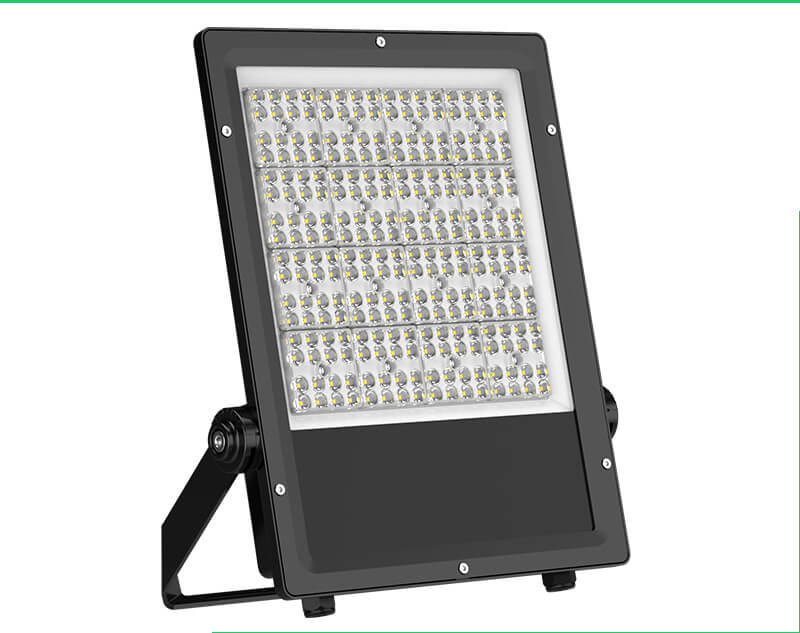

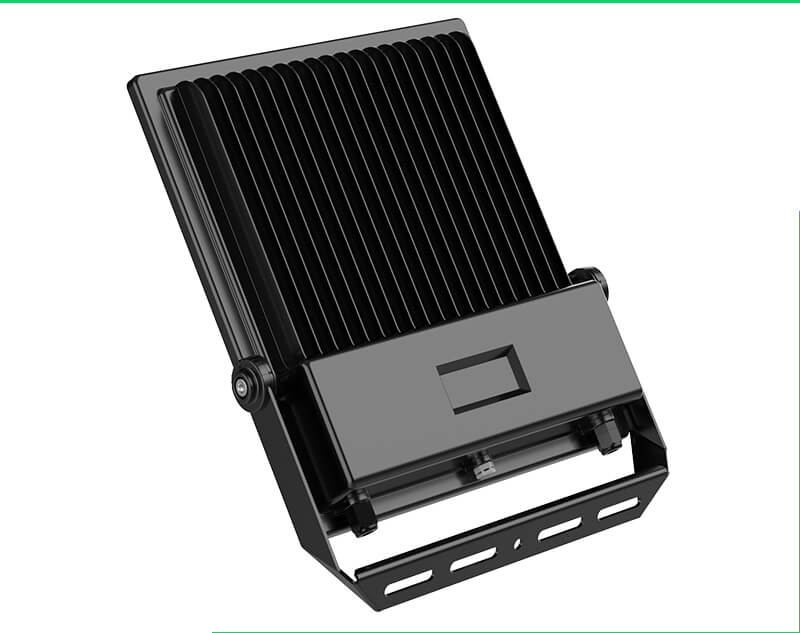

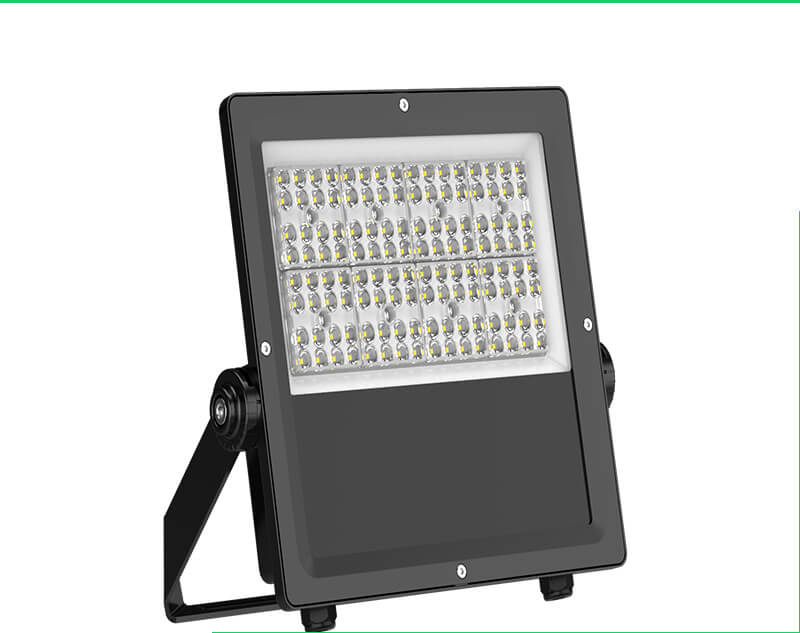

LED Flood Light
Adjustable 3CCT & 3Power, IP66
Model FL01 -
LED Flood Light
200W, 300W, 400W, 180lm/W
Model FL02 -
LED Flood Light
150W, 200W, IP66, 160lm/W
Model FL03 -
LED Tunnel Light
400W, IP66, Lumileds 5050
Model TN01
Datasheet Of LED Flood Light
| Rated Power: | 100W |
200W |
300W |
400W |
|
|---|---|---|---|---|---|
| Lumens: | 18000LM |
36000LM |
54000LM |
72000LM |
|
| Lumen Efficacy: | 180lm/W |
||||
| LED Chip: | SMD2835 |
||||
| CRI: | Ra≥70 (Ra≥80 Optional) |
||||
| CCT Color: | 3000K/4000K/6000K |
||||
| Beam Angle: | 60/90/120° |
||||
| Input Voltage: | AC200-240V, 50/60Hz (AC100-277V Optional) |
||||
| LED Driver: | Meanwell Driver, Philips Driver, Lifud Driver |
||||
| Flicker: | Non Flicker |
||||
| Power Factor: | PF≥0.92 |
||||
| IP Rating: | IP66 |
||||
| Housing Color: | Black Color |
||||
| Function Optional: | 1-10V, Triac, DALI Dimmable |
||||
| Material: | Aluminum Houseing, PC Lens |
||||
| Working Temp: | -30°C to +45°C |
||||
| Working Humidity: | 10% to 90% RH |
||||
| Lifespan: | 100,000H |
||||
| Warranty: | 5 Years |
||||
Application of LED Flood Light
LED floodlights are versatile, energy-efficient lights used to brightly illuminate large outdoor and indoor areas for security, safety, and aesthetics, common in sports stadiums, construction sites, parking lots, building facades, ports, and industrial facilities. Their wide beam angle and high lumen output make them ideal for general area lighting, highlighting features, and ensuring visibility in dark or hazardous environments.
- • Security & Safety: Deter intruders, improve visibility for surveillance, light up driveways, and secure large premises like campuses and warehouses.
- • Sports & Recreation: Illuminate stadiums, arenas, and outdoor fields for nighttime games and events, providing bright, even light.
- • Construction & Industrial: Light up busy construction sites, mining areas, ports, factories, and warehouses for 24/7 operations, enhancing productivity and preventing accidents.
- • Architectural & Landscape: Accentuate building facades, monuments, and landscape features, adding visual appeal and curb appeal at night.
- • Commercial & Public Spaces: Light up parking lots, shopping centers, parks, streets, airports, and billboards to improve navigation and visibility.
