UFO High Bay Light
210LM/W, 3CCT&Power
Model UFO
Switchable Beam Angle -
UFO High Bay Light
210LM/W, 60W, 80W, 100W
Model UFO
Microwave Motion Sensor -
UFO High Bay Light
100W, 150W, 200W
Model UFO
210lm/W -
UFO High Bay Light
100W, 150W, 200W
Model UFO
210lm/W -
UFO High Bay Light
100W, 150W, 200W
Model UFO
190lm/W -
UFO High Bay Light
100W, 150W, 200W
Model UFO
190lm/W -
UFO High Bay Light
100W, 150W, 200W
Model UFO
Square Version -
UFO High Bay Light
100W, 150W, 200W
Model UFO
Smooth Surface, White Houseing
Technical Specifications Of LED High Bay Light
| Demension: | Ф255MM |
Ф300MM |
Ф365MM |
||
|---|---|---|---|---|---|
| Rated Power: | 100W |
150W |
200W |
||
| Switchable Power: | 100-80-60W |
150-120-90W |
200-160-120W |
||
| Lumen Efficacy: | 210lm/W |
||||
| Optional lm/W: | 130lm/W, 150lm/W, 170lm/W, 190lm/W |
||||
| LED Chip: | SMD2835 |
||||
| CRI: | Ra≥70 (or Ra≥80) |
||||
| CCT Color: | 4000K / 5000K / 6000K |
||||
| Beam Angle: | 60/90/120° |
||||
| Input Voltage: | AC200-240V, 50/60Hz (AC100-277V Optional) |
||||
| Flicker: | Non Flicker |
||||
| Power Factor: | PF≥0.92 |
||||
| IP Rating: | IP65 |
||||
| Housing Color: | Black or White Color |
||||
| Function Optional: | Emergency Battery, Microwave Motion Sensor, 1-10V/Triac Dimmer |
||||
| Material: | Aluminum + PC Lens |
||||
| Working Temp: | -30°C to +45°C |
||||
| Working Humidity: | 10% to 90% RH |
||||
| Lifespan: | 50,000H |
||||
| Warranty: | 5 Years |
||||

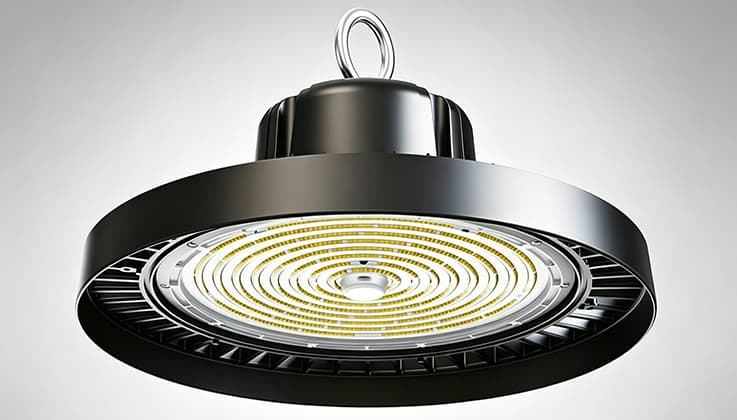

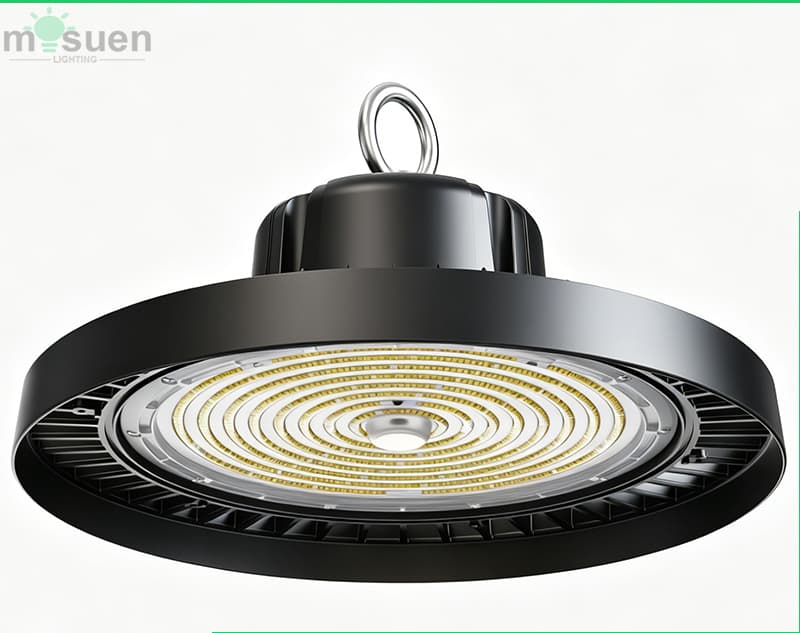

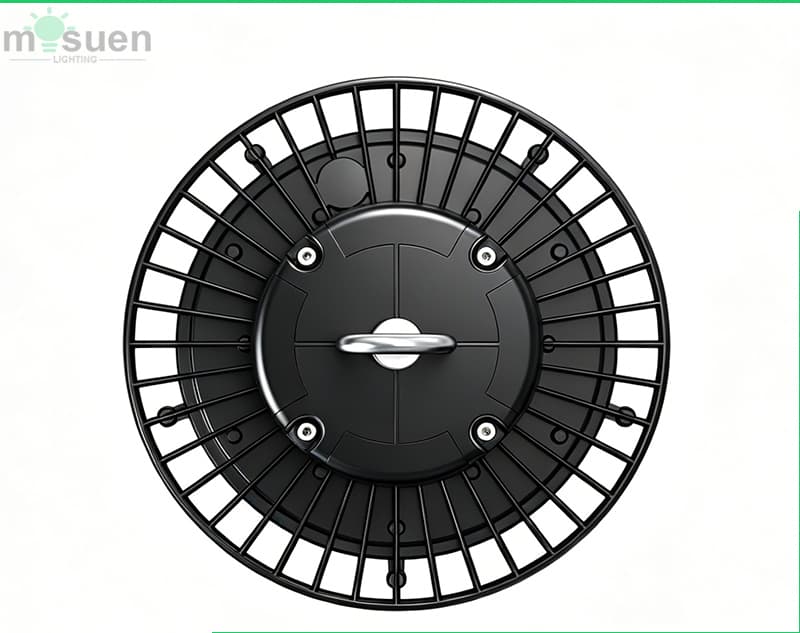

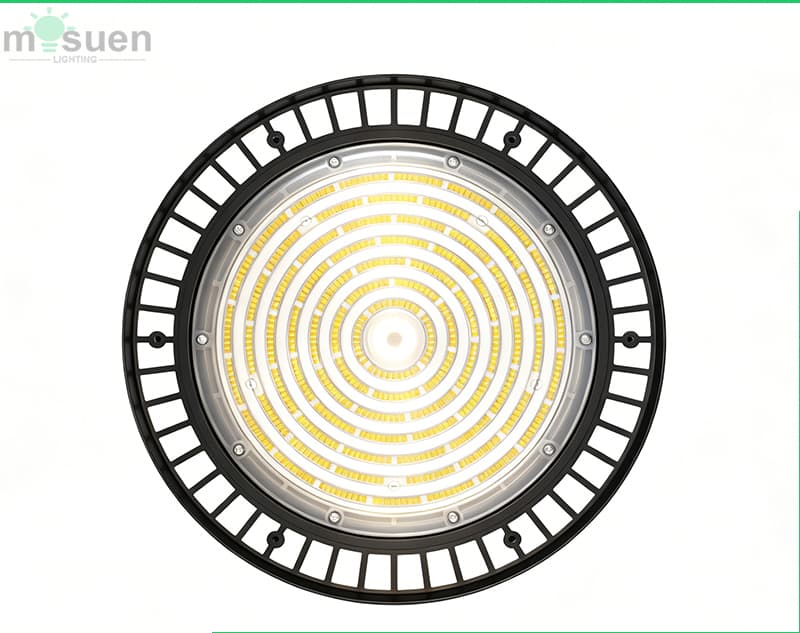

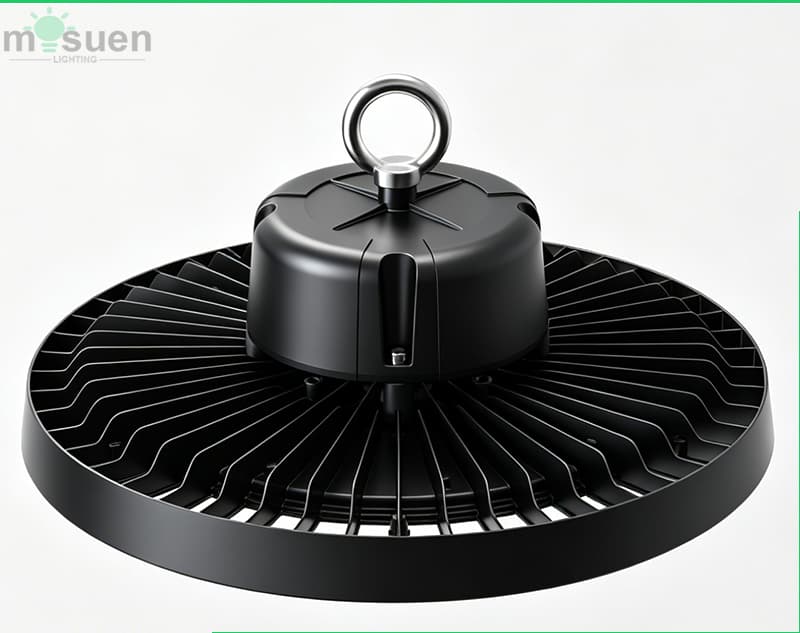

Picture of Product
Product Overview: Premium Switchable UFO LED High Bay Lighting Solution
The 210lm/W switchable UFO LED high bay light represents a breakthrough in industrial lighting efficiency and flexibility. Designed specifically for demanding applications such as warehouses, manufacturing facilities, logistics centers, and large retail spaces, this fixture combines exceptional luminous efficacy with intelligent power management capabilities. Unlike conventional fixed-output high bay lights, this innovative solution empowers facility managers and end-users to optimize energy consumption and lighting ambiance simultaneously, without requiring expensive rewiring or fixture replacement.
The "UFO" design (ultra-flat optical) configuration provides a distinctive dome-shaped form factor that delivers superior light distribution across expansive floor areas. With a luminous efficacy of 210 lumens per watt, this fixture operates at the forefront of LED technology, ensuring maximum light output while consuming minimal electrical power. The ability to switch between three distinct wattage levels (200W, 160W, 120W) allows operators to fine-tune energy usage based on seasonal requirements, occupancy patterns, or specific operational needs. Simultaneously, the adjustable color temperature (6000K daylight, 5000K neutral white, 4000K warm white) provides flexibility for different tasks and visual comfort preferences across various industrial and commercial environments.
Constructed with premium-grade aluminum housing and featuring an advanced flicker-free driver with power factor exceeding 0.9, this fixture meets the stringent performance requirements of professional lighting applications. The IP65 weatherproof rating ensures reliable operation in challenging indoor and transitional outdoor environments, including spaces subject to dust, humidity, and occasional water exposure. This comprehensive feature set, combined with rigorous quality standards and professional-grade components, makes this switchable UFO LED high bay an investment in long-term operational reliability and energy cost reduction.
Advanced Technical Features & Benefits
Why 210lm/W Matters: Energy Efficiency Leadership
The 210 lumens-per-watt efficacy rating positions this switchable UFO LED high bay among the most efficient industrial lighting solutions available. To illustrate the practical impact:
- • 200W mode produces 42,000 lumens - equivalent to six traditional 400W metal halide fixtures while consuming 75% less power
- • 160W mode delivers 33,600 lumens - ideal for medium-duty operations and energy-conscious facilities seeking 20% additional power reduction
- • 120W mode generates 25,200 lumens - perfect for low-traffic areas, storage sections, or minimal-illumination tasks with 40% power reduction from full capacity
- • Compared to 150lm/W conventional LED fixtures, this 210lm/W model reduces consumption by 29% for identical light output
- • Over 50,000 operating hours at full capacity, this fixture's superior efficacy saves approximately $2,000-3,500 in electricity costs versus older high bay technology
Operational Modes: Flexibility for Every Scenario
The switchable design provides facility operators with unprecedented flexibility to optimize lighting according to real-time conditions:
| Operating Mode | Power Consumption | Light Output | Typical Applications | Energy Savings vs. 200W |
|---|---|---|---|---|
| Full Brightness (200W) | 200 watts | 42,000 lumens | Precision tasks, quality inspection, assembly areas, maximum visibility requirements | — |
| Medium Output (160W) | 160 watts | 33,600 lumens | General warehouse operations, routine material handling, standard traffic areas during daytime | 20% reduction |
| Reduced Lighting (120W) | 120 watts | 25,200 lumens | Storage areas, maintenance zones, pathways, evening/off-peak operations, spaces with supplementary natural light | 40% reduction |
PROFESSIONAL RECOMMENDATION: Wattage Selection Strategy
Facility managers should implement intelligent power management protocols: Operate at 200W during peak business hours and precision work shifts, reduce to 160W during moderate-activity periods, and utilize 120W mode during evening operations, minimal-occupancy periods, or for supplementary lighting. This tiered approach can reduce annual electricity expenses by 15-25% compared to fixtures operating at constant full power, while maintaining optimal lighting conditions for all operational requirements.
Color Temperature Selection Guide for Optimal Application Performance
● 6000K Daylight Color Temperature
Characteristics: Cool, energizing, closely matches natural daylight. Enhances alertness, visual acuity, and color discrimination.
Recommended Applications: Precision manufacturing, assembly lines, quality control inspection areas, medical device production, electronics manufacturing, areas requiring accurate color matching, general warehouse operations during daylight augmentation.
Worker Impact: Supports concentration and alertness during extended shifts. Ideal for tasks requiring high visual accuracy and detailed inspection work.
● 5000K Neutral White Color Temperature
Characteristics: Neutral, balanced illumination between cool and warm spectrum. Provides comfortable, natural-appearing lighting suitable for most environments.
Recommended Applications: General warehouse operations, retail spaces, office areas within industrial facilities, loading docks, cross-dock operations, multipurpose industrial spaces serving various functions.
Worker Impact: Maintains alertness without excessive stimulus. Provides versatile lighting suitable for extended occupancy periods and diverse task requirements.
● 4000K Warm White Color Temperature
Characteristics: Warmer appearance, promotes relaxation and visual comfort. Reduces perceived harshness of industrial environments.
Recommended Applications: Break rooms, administrative areas, facilities management offices, high-occupancy warehouses where worker comfort influences productivity, loading areas requiring long-term occupancy, evening operations seeking reduced visual fatigue.
Worker Impact: Enhances comfort during extended work periods. Reduces eye strain and visual fatigue, supporting worker wellbeing and job satisfaction.
Professional-Grade Quality & International Certifications
This switchable UFO LED high bay light meets stringent international standards and incorporates professional-grade components ensuring reliability in demanding industrial environments:
Component Quality Assurance
- Premium LED Chips: Industry-leading manufacturers with spectral consistency and superior binning control, ensuring color uniformity across all manufactured units
- Advanced Driver Technology: Proprietary constant-current design with surge protection, thermal management, and flicker elimination. Tested for 50,000+ hour operational reliability
- Thermal Management: Optimized aluminum heatsink design ensures LED junction temperatures remain within specified operating ranges, maximizing lifespan and performance consistency
- Electrical Safety: Built-in overcurrent protection, short-circuit protection, and surge suppression prevent component damage from electrical anomalies
- Manufacturing Quality: 100% component testing and quality control inspection before shipping ensure zero defect rates and consistent product performance
Professional Installation, Integration & Deployment Guidance
1. Mounting & Installation Considerations
The UFO high bay design accommodates various mounting configurations suitable for industrial and commercial environments:
- Ceiling Mounting: Direct flush mounting or pendant-hung installation on structure, utilizing standard industry-compatible mounting brackets and hardware
- Recommended Mounting Heights: 15-50 feet (4.5-15 meters) depending on desired illumination level and coverage area. Superior optics provide excellent light distribution even at maximum heights
- Layout Spacing: For typical warehouse applications with 200W mode at 30-foot height, spacing of 35-40 feet between fixtures provides uniform illumination without dark zones
- Electrical Integration: Universal AC 100-277V input enables integration into existing facility electrical infrastructure without additional transformers or specialized circuits
- Control Wiring: Simple line-voltage connection with integrated wattage and color temperature selector switches. No complex low-voltage controls or additional programming required
2. Energy Management Implementation Strategy
Maximize operational efficiency through systematic power management protocols:
- Shift-Based Optimization: Operate at 200W during peak productivity shifts (typically 6am-5pm), reduce to 160W during partial-occupancy periods (5pm-10pm), and utilize 120W for maintenance shifts or overnight security lighting
- Seasonal Adjustment: Increase power levels during winter months when natural daylight diminishes; reduce levels during summer when supplementary daylight augments artificial illumination
- Task-Based Configuration: Dedicate high-precision areas to 6000K-200W mode; configure general operations to 5000K-160W; designate break areas and secondary spaces to 4000K-120W for comfort optimization
- Motion Sensor Integration (Optional): Compatible with facility motion detection systems for automated power reduction in unoccupied zones (compatibility verification recommended)
- Maintenance Scheduling: IP65 rating reduces cleaning requirements; annual lens inspection recommended to maintain optical performance and maintain 210lm/W efficacy levels
Return on Investment & Total Cost of Ownership Analysis
1. Financial Impact Calculation Framework
Facility operators implementing this switchable UFO LED high bay lighting solution typically achieve measurable financial returns within 2-3 years of deployment:
Installation Baseline: Replace 12 conventional 400W metal halide fixtures with 12 switchable 210lm/W UFO LED units
Annual Energy Savings Calculation:
- • Average daily operation: 12 hours at 160W (medium mode) = 1,920 Wh per fixture
- • 12 fixtures × 1.92 kWh = 23.04 kWh daily energy consumption
- • Annual consumption: 23.04 kWh × 365 days = 8,409.6 kWh
- • Compared to original 400W × 12 = 4,800W average: 57.6 kWh daily = 21,024 kWh annually
- • Annual energy reduction: 12,614.4 kWh (60% reduction)
- • At average industrial electricity rate of $0.11/kWh: $1,387.59 annual savings per fixture cluster
Total 5-Year Economics:
- • Fixture cost: Typically $150-250 per unit LED vs. $80-120 per halide fixture = $840-1,680 additional capital investment
- • Lamp replacement elimination: LED fixtures eliminate 5-year replacement costs (~$200 per halide fixture) = $2,400 savings
- • Energy savings (5 years): $1,387.59 × 5 = $6,937.95
- • Net 5-year benefit: $7,257.95 financial advantage plus improved lighting quality and operational flexibility
2. Maintenance Cost Reduction Benefits
- Lamp Replacement Elimination: 50,000+ hour lifespan eliminates periodic replacement cycles common to halide and older fluorescent fixtures
- Reduced Service Labor: Fewer maintenance interventions reduce facility labor allocations and operational disruptions
- Thermal Efficiency: Advanced driver and LED technology eliminate thermal management complications common to conventional fixtures
- Facility Power Quality: Power factor >0.9 reduces utility company power factor penalties, typically $200-500 annually for large facilities
Why Choose This Switchable UFO LED High Bay: Strategic Advantages
- Industry-Leading Efficacy: 210lm/W positions this fixture among the most efficient industrial lighting solutions available, directly reducing operational energy costs and environmental impact
- Unprecedented Operational Flexibility: Three-mode power switching combined with adjustable color temperature provides facility operators with precise control over energy expenditure, comfort, and performance optimization previously requiring multiple fixture types
- Professional-Grade Reliability: Aluminum construction, flicker-free driver, >0.9 power factor, and 50,000+ hour lifespan ensure long-term operational consistency and minimal maintenance requirements
- Comprehensive Environmental Protection: IP65 rating extends fixture lifespan in challenging warehouse, transitional, and industrial environments by protecting critical components from dust and water exposure
- Superior Worker Experience: ≥80 CRI color rendering, selectable color temperatures (6000K/5000K/4000K), and flicker-free operation support visual comfort, task performance, and worker wellbeing across diverse industrial applications
- Rapid Return on Investment: Energy savings typically justify fixture costs within 2-3 years, with 5-year cumulative benefits frequently exceeding $5,000-7,000 per fixture cluster
- Future-Ready Technology: Represents cutting-edge LED development; designed for long-term relevance and operational viability in evolving industrial environments
- Comprehensive Support & Warranty: 5-year manufacturer warranty, professional installation guidance, and ongoing technical support ensure confidence in selection and long-term operational success
Industry-Specific Application Scenarios
Warehouse & Logistics Operations
Optimal Configuration: 160W mode, 5000K color temperature
Execute efficient material handling, inventory management, and order fulfillment with consistent, neutral-white illumination supporting color-based picking systems and barcode scanning. Implement 120W mode in storage sections and aisles receiving supplementary skylighting. Benefit from 20-40% energy reduction compared to conventional warehouse lighting while maintaining task performance standards.
Manufacturing & Assembly Facilities
Optimal Configuration: 200W mode, 6000K color temperature
Support precision assembly work, quality inspection, and component verification with maximum illumination and daylight color rendering. The ≥90 CRI ensures accurate color discrimination for visual quality control. Reduce to 160W during secondary shift operations while maintaining production quality standards. Annual energy savings of 15-25% compared to traditional metal halide fixtures in these precision environments.
Cold Storage & Temperature-Controlled Facilities
Optimal Configuration: 160W mode, 5000K or 4000K color temperature
The advanced driver design and aluminum thermal management perform reliably even in -20°C to +50°C operating range. IP65 protection withstands humidity and frost exposure common in refrigerated environments. Superior efficiency reduces thermal load, complementing facility HVAC systems. Switchable wattage accommodates different operational periods and occupancy patterns.
Retail & Commercial Distribution Centers
Optimal Configuration: 200W mode (customer areas, 6000K); 120W mode (storage areas, 4000K)
Create dynamic lighting environments supporting both customer experience and operational efficiency. 6000K modes enhance product visibility and customer navigation in display areas. 4000K modes reduce operational costs in warehouse sections while maintaining safety standards. Color temperature switching supports seasonal transitions without fixture replacement.
Sports Facilities & Recreation Centers
Optimal Configuration: 200W mode, 5000K or 6000K color temperature
Deliver consistent, flicker-free illumination for athletic activities, television broadcasts, and spectator comfort. The >0.9 power factor reduces facility electrical costs during extended operating hours. Implement 160W mode during practice sessions and off-peak activities. 50,000+ hour lifespan minimizes maintenance disruptions during event schedules.
Technical Support, Ordering & Professional Services
Pre-Purchase Technical Consultation
Our engineering team provides complimentary site assessments, illumination calculations, and fixture quantity recommendations. Submit your facility specifications (dimensions, ceiling height, current lighting costs, application requirements) for personalized guidance.
Installation & Integration Support
Professional installation services available for large-scale deployments. Our team ensures optimal mounting, electrical integration, and performance verification. Training provided on wattage/color temperature adjustment procedures and energy management protocols.
Warranty & After-Sales Service
Five-year comprehensive warranty covers all components. Technical support team available for operational questions, troubleshooting, and maintenance guidance. Priority replacement service for any warranty-covered defects.
