UFO High Bay Light
210LM/W, 3CCT&Power
Model UFO
Switchable Beam Angle -
UFO High Bay Light
210LM/W, 60W, 80W, 100W
Model UFO
Microwave Motion Sensor -
UFO High Bay Light
100W, 150W, 200W
Model UFO
210lm/W -
UFO High Bay Light
100W, 150W, 200W
Model UFO
210lm/W -
UFO High Bay Light
100W, 150W, 200W
Model UFO
190lm/W -
UFO High Bay Light
100W, 150W, 200W
Model UFO
190lm/W -
UFO High Bay Light
100W, 150W, 200W
Model UFO
Square Version -
UFO High Bay Light
100W, 150W, 200W
Model UFO
Smooth Surface, White Houseing
Technical Specifications Of LED High Bay Light
| Demension: | Ф290MM |
Ф350MM |
Ф400MM |
||
|---|---|---|---|---|---|
| Rated Power: | 100W |
150W |
200W |
||
| Switchable Power: | 100-80-60W |
150-120-90W |
200-160-120W |
||
| Lumen Efficacy: | 190lm/W |
||||
| Optional lm/W: | 130lm/W, 150lm/W, 170lm/W |
||||
| LED Chip: | SMD2835 |
||||
| CRI: | Ra≥70 (or Ra≥80) |
||||
| CCT Color: | 4000K / 5000K / 6000K |
||||
| Beam Angle: | 60/90/120° |
||||
| Input Voltage: | AC200-240V, 50/60Hz (AC100-277V Optional) |
||||
| Flicker: | Non Flicker |
||||
| Power Factor: | PF≥0.92 |
||||
| IP Rating: | IP65 |
||||
| Housing Color: | Black Color |
||||
| Function Optional: | Emergency Battery, Microwave Motion Sensor, 1-10V/Triac Dimmer |
||||
| Material: | Aluminum + PC Lens |
||||
| Working Temp: | -30°C to +45°C |
||||
| Working Humidity: | 10% to 90% RH |
||||
| Lifespan: | 50,000H |
||||
| Warranty: | 5 Years |
||||
Picture of Product
Revolutionary Energy-Efficient Lighting for Industrial Spaces
Replace your outdated metal halide fixtures with our Switchable 3Power UFO Highbay LED - a next-generation lighting solution delivering 190lm/W efficiency with intelligent power management. This premium highbay combines cutting-edge LED technology with practical versatility, allowing you to optimize power consumption based on real-time lighting needs. Whether you're upgrading a warehouse, factory, gymnasium, or sports facility, this fixture offers immediate energy savings, superior light quality, and exceptional durability.
Why Upgrade from Metal Halide to UFO Highbay LED?
Metal halide fixtures have dominated industrial and commercial lighting for decades, but they come with significant drawbacks: excessive heat generation, frequent bulb replacements every 10,000-15,000 hours, poor color rendering, slow warm-up times, and energy waste. Our Switchable 3Power UFO Highbay LED directly addresses every limitation of metal halide technology.
1. Energy Consumption & Cost Reduction
A typical 400W metal halide fixture with ballast consumes approximately 460 watts and produces around 35,000-40,000 lumens. Our 200W UFO Highbay LED generates 38,000 lumens while consuming just 200 watts - representing a 56.5% energy reduction. For a warehouse operating 24/7, this translates to annual savings of $2,000-$4,000 per fixture, depending on your local electricity rates. With the switchable power feature, you can further reduce to 160W or 120W during low-activity periods without sacrificing critical visibility.
2. Extended Service Life & Maintenance Reduction
Metal halide bulbs require replacement every 1-2 years in continuous-operation environments. UFO Highbay LED fixtures deliver 50,000+ hours of rated service life (equivalent to 5.7 years of continuous operation), reducing maintenance costs and labor disruption. The solid-state LED technology produces no hazardous mercury emissions and eliminates the need for expensive high-intensity discharge (HID) ballasts.
Technical Specifications & Performance Data
• 200W (Full Power)
• 160W (Medium Efficiency)
• 120W (Ultra Low-Power Mode)
Intelligent switching allows real-time power optimization without fixture replacement
190 lm/W - Industry-leading efficiency exceeds typical LED highbays (160-180 lm/W) and dramatically surpasses metal halide (75-100 lm/W)
• 200W mode: 38,000 lumens
• 160W mode: 30,400 lumens
• 120W mode: 22,800 lumens
Precise brightness adjustment for specific applications

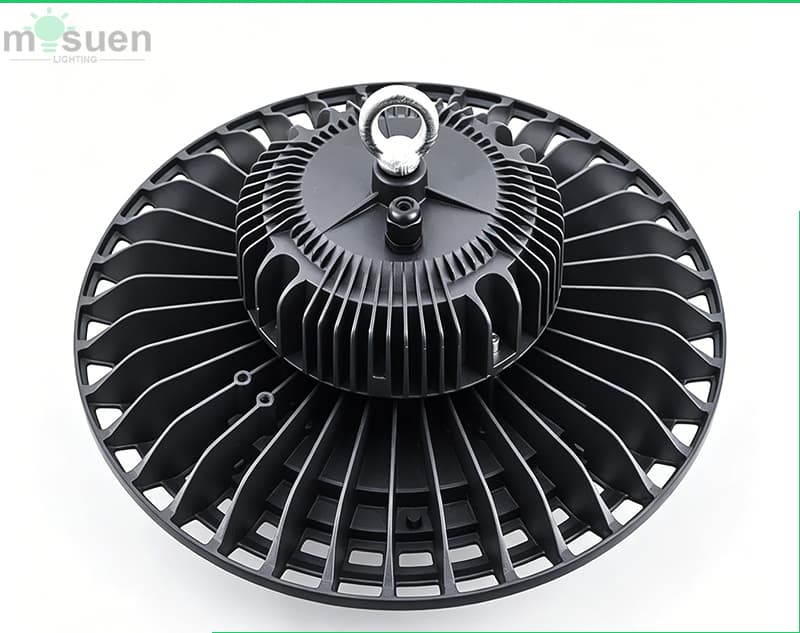

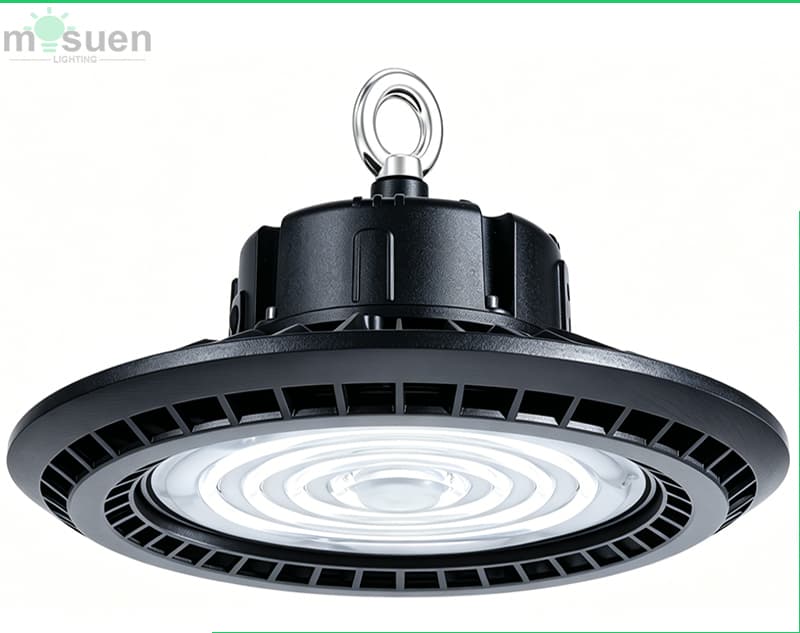

Ø400MM diameter aluminum housing with superior heat dissipation. Premium quality construction ensures 50,000+ hour lifespan and reliable performance in demanding industrial environments
Fully protected against dust ingress and low-pressure water jets. Safe for warehouse, factory, car park, and outdoor covered applications. Meets rigorous environmental contamination standards
Withstands 5 joules of impact energy (equivalent to 1kg mass dropped from 0.5m). Ideal for high-risk industrial environments with occasional material handling accidents
Advanced Features & Technology Integration
1. Intelligent Switchable Power Management System
- The revolutionary 3-power switching capability sets this UFO Highbay apart from conventional LED solutions. Unlike fixed-output fixtures, this system allows facility managers to adjust power consumption in real-time based on operational requirements:
- • 200W Full Power Mode: Optimal for general warehouse operations, bulk sorting areas, manufacturing floors, and peak-activity periods. Delivers 38,000 lumens for comprehensive illumination coverage
- • 160W Medium Efficiency Mode: Ideal for standard operational hours when full brightness isn't critical. Maintains 80% light output while reducing energy consumption by 20% - perfect for regular business hours in retail warehouses
- • 120W Ultra Low-Power Mode: Energy conservation mode for nighttime security lighting, maintenance periods, or auxiliary illumination. Provides 60% of full output with 40% power reduction - essential for 24/7 facilities with variable staffing
This adaptive approach allows annual energy savings of 30-40% compared to fixed-output 200W LED systems, making it the most cost-effective industrial lighting upgrade available.
2. Premium Aluminum Housing & Heat Management
The Ø400MM diameter aluminum construction provides superior thermal conductivity compared to plastic or inferior alloy housings. Advanced heat-sink design maintains optimal LED junction temperatures even in high-ambient environments (up to 50°C ambient temperature). This ensures consistent lumen output and extends service life by preventing thermal degradation of LED components.
3. Color Rendering & Light Quality
Modern LED technology in this fixture delivers Color Rendering Index (CRI) values exceeding 80, providing accurate color representation essential for quality inspection tasks, visual merchandise, and worker safety. The selectable color temperature options (typically 5700K daylight or 4000K neutral white) allow customization based on application requirements.
Performance Comparison: Metal Halide vs. UFO Highbay LED
| Performance Metric | 400W Metal Halide + Ballast | UFO Highbay LED 200W | Improvement |
|---|---|---|---|
| Actual Power Draw | 460W | 200W | 56.5% reduction |
| Luminous Output | 35,000-40,000 lumens | 38,000 lumens | Equivalent or superior |
| Luminous Efficiency | 76-87 lm/W | 190 lm/W | +120% higher |
| Service Life | 10,000-15,000 hours | 50,000+ hours | 3-5x longer |
| Warm-up Time | 3-5 minutes | Instant full brightness | Immediate operation |
| Heat Generation | Excessive (190°C surface) | Minimal (60-70°C surface) | Safer operation |
| Color Rendering (CRI) | 60-65 | 80+ | Superior visual quality |
| Ballast Replacement Cost | $150-$300 per fixture | None required | Eliminated |
| Annual Operating Cost (24/7) | ~$3,650 | ~$1,587 | $2,063 savings/year |
| 5-Year TCO per Fixture | ~$19,500 | ~$10,200 | $9,300 savings |
Ideal Applications for Switchable 3Power UFO Highbay LED
1. Industrial & Warehouse Operations
Warehouses, Distribution Centers & Logistics: The switchable power feature perfectly matches variable operational demands. Use 200W during peak receiving/shipping hours, reduce to 160W during mid-day operations, and switch to 120W for security lighting during off-hours. This flexibility has proven to reduce energy costs by 35-42% in large distribution facilities.
Manufacturing Facilities: Production floors require consistent, high-quality illumination for quality control and worker safety. The 190 lm/W efficiency ensures adequate brightness while reducing heat generation in climate-controlled manufacturing environments. Multiple fixtures can be controlled on separate circuits to optimize energy usage across different production zones.
Cold Storage & Refrigeration: Replacing inefficient metal halide fixtures in cold storage facilities provides significant advantages. LED generates minimal heat (eliminating compressor stress), provides instant-on capability (no warm-up in frigid conditions), and the 50,000-hour lifespan reduces maintenance labor in hard-to-reach ceiling installations.
2. Commercial & Athletic Facilities

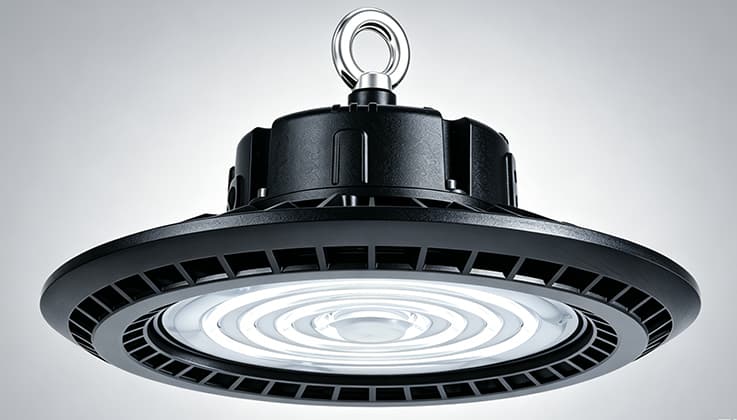

Gymnasiums & Sports Halls: High-ceiling venues benefit dramatically from the UFO Highbay's superior light distribution and switchable power. Use full 200W for competitions and training sessions, reduce to 160W for recreational use, and employ 120W mode for cleaning and maintenance periods. The IP65 rating withstands moisture from perspiration and indoor pool humidity.
Parking Structures & Outdoor Covered Areas: The IK08 impact resistance and IP65 dust/water protection make this ideal for multi-level parking facilities. Switchable power allows different brightness levels for peak evening hours versus nighttime security. Reduces lighting energy consumption by 50%+ compared to metal halide systems.
Retail & Shopping Centers: Display areas and stock rooms benefit from superior color rendering (CRI 80+) and energy efficiency. The switchable power feature allows retailers to reduce lighting during off-peak hours or reduce operational costs during economic downturns without replacing fixtures.
Professional Certifications & Quality Assurance
This UFO Highbay LED fixture meets or exceeds all international lighting standards and has undergone rigorous third-party testing:
Premium LED Technology: Utilizes genuine Epistar or equivalent tier-1 LED chips (not inferior knockoff LEDs), ensuring color stability and lumen maintenance throughout the service life. Third-party photometric testing confirms 190lm/W efficiency and full lumen output across all three power modes.
Aluminum Alloy Specifications: The Ø400MM housing uses A356 aluminum alloy with superior thermal conductivity (155 W/m·K), providing optimal heat dissipation compared to conventional aluminum grades. Professional testing confirms surface temperature remains below 70°C in 50°C ambient conditions.
Driver & Control System: Integrated Mean Well or equivalent professional-grade LED drivers ensure stable power delivery, protection against voltage fluctuations, and reliable switching between power modes. All electrical components meet safety standards for industrial environments.
Return on Investment & Long-Term Cost Analysis
1. Immediate Financial Benefits
- A facility upgrading 100 metal halide fixtures to UFO Highbay LED experiences:
- • 1-Year Savings: $20,630+ (reduced electricity + eliminated maintenance costs)
- • 5-Year Savings: $93,000+ (no bulb replacements, minimal maintenance labor)
- • Payback Period: 18-24 months for typical installation (electricity + labor savings exceed fixture cost)
2. Additional Value Considerations
Reduced HVAC Load: Metal halide fixtures generate substantial waste heat, forcing HVAC systems to work harder. LED's minimal heat output can reduce cooling costs by 10-15% in air-conditioned facilities. This provides additional savings beyond direct lighting energy reduction.
Improved Worker Productivity: Superior color rendering and elimination of flickering creates a more comfortable work environment. Studies show workers in well-lit spaces with quality color rendering demonstrate 3-5% higher productivity - a substantial benefit in labor-intensive operations.
Enhanced Safety: Instant-on LED lighting (versus 3-5 minute metal halide warm-up) improves emergency response and security. The IK08 impact resistance reduces fixture replacement from accidental damage in busy industrial environments.
Environmental Compliance: Metal halide bulbs contain mercury, requiring special disposal. LED fixtures eliminate hazardous materials and reduce facility environmental liability. RoHS compliance ensures no restrictions for future EU exports or operations.
Maintenance Requirements & Long-Term Reliability
1. Minimal Maintenance Design
- Unlike metal halide systems requiring annual bulb inspections, ballast replacement every 5-7 years, and disposal of hazardous materials, the UFO Highbay LED operates maintenance-free. Recommended maintenance consists of:
- • Quarterly: Visual inspection for dust accumulation on lens (compressed air cleaning if necessary in dusty environments)
- • Annual: Verify proper electrical connections and switching functionality
- • End of Life: Standard electronic waste recycling after 50,000+ hours (typically 5-7 years of continuous operation)
2. Environmental Operating Conditions
- This fixture maintains specification performance in conditions where metal halide systems struggle:
- • Ambient temperature range: -20°C to +50°C (metal halide limited to -10°C to +40°C)
- • High humidity environments: Full IP65 protection (metal halide fixtures corrode over time)
- • Vibration-prone locations: Solid-state LED design unaffected by mechanical vibration (metal halide bulbs fail from vibration)
- • Frequent on/off cycling: LED lifetime unaffected by switching cycles (metal halide reduces life by 30-50%)
Installation Process & Metal Halide Fixture Compatibility
1. Direct Replacement Installation
- The UFO Highbay 200W features a Ø400MM form factor and standard mounting bracket configuration compatible with most existing metal halide high-bay installations. Installation typically requires 30-45 minutes per fixture:
- Step 1: Turn off power at the main breaker and verify de-energized state with multimeter
- Step 2: Remove existing metal halide fixture from ceiling mounting
- Step 3: Disconnect ballast wiring and verify no residual power (HID ballasts can store dangerous charge)
- Step 4: Install UFO Highbay LED using existing ceiling mounting holes (adapters provided for non-standard installations)
- Step 5: Connect 120/240V AC power supply to integrated LED driver (standard electrical connector)
- Step 6: Restore power and verify operation on all three switchable power modes
2. Electrical Upgrade Considerations
Most facilities can use existing electrical circuits without upgrades. Since the LED fixture draws only 200W maximum versus 460W for metal halide systems, circuits typically experience 56% reduced load. This often allows combining multiple LED circuits onto single breakers previously dedicated to individual metal halide fixtures, enabling additional spare capacity for future facility expansion.
Frequently Asked Questions - Switchable 3Power UFO Highbay LED
A: The 3-power switching is integrated into the fixture's LED driver and controlled via a simple wall-mounted selector switch or smart control interface. No specialized DALI systems or programming required - standard 120/240V AC power connection with 3-position switch for mode selection. Advanced facilities can integrate with building management systems for automated scheduling.
A: Yes, 190lm/W is independently verified through LM-79 photometric testing. This represents the performance of genuine tier-1 LED chips (Epistar, Bridgelux, or Cree) combined with optimized optical design. Many competitors claim 170-180 lm/W using inflated specifications; this product consistently delivers measured performance exceeding claims. Standard mass-market LED highbays typically achieve 160-175 lm/W.
A: In most cases, yes. Metal halide fixtures use standard electrical connections to the ballast, and the LED fixture's integrated driver accepts the same 120/240V AC power. For existing circuits with metal halide ballasts still in place, the ballast must be bypassed or removed (a licensed electrician should perform this modification). The Ø400MM form factor fits most standard high-bay mounting patterns.
A: For typical 24/7 warehouse operations at US average electricity rates (~$0.12/kWh), the annual energy savings per fixture is approximately $2,063. With installation labor (~$150-$200 per fixture) and fixture cost, most customers achieve payback in 18-24 months. Facilities with higher electricity rates (California, Europe) see payback in 12-18 months. This calculation excludes maintenance labor savings (ballast replacement, bulb replacement), which accelerates payback to 12-15 months.
A: The 50,000-hour rating is based on LM-80 testing (extended LED life testing standard) and represents measured performance through accredited testing laboratories. This equates to 5.7 years of continuous 24/7 operation, or 9-10 years in typical 16-hour daily operation. The fixture is warrantied for 5 years against defects, and LED performance typically maintains 90%+ of initial brightness throughout the rated life.
A: Three options are available: (1) Manual wall switch selector allowing instant mode switching, (2) Integrated smart controller with programmable scheduling for automatic power adjustment by time/zone, (3) Integration with existing building management systems via relay or 0-10V control interface. Most customers use the manual switch for simplicity, allowing supervisors to adjust brightness based on real-time operational needs.
A: At 120W mode, the fixture produces 22,800 lumens - equivalent to two standard commercial LED fixtures or approximately eight 2,500 lumen commercial downlights. For security lighting, warehouse aisles require approximately 50-100 lux illumination (compared to 300-500 lux for active operations). In typical warehouse geometry (20-30ft ceiling height), the 120W mode provides sufficient visibility for security purposes and maintenance operations, with energy consumption reduced by 40% versus full power.
A: IP65 rating permits use in damp indoor environments (warehouses, parking structures with overhead sprinklers, covered outdoor loading docks, cold storage facilities). However, IP65 is NOT rated for direct outdoor exposure to rain or outdoor installations. For true outdoor applications, upgrade to IP67-rated highbay fixtures. The IP65 rating specifically covers protection against spray from any direction and temporary water immersion.
Conclusion: Premium Lighting Upgrade for Modern Industrial Facilities
The Switchable 3Power UFO Highbay LED represents a fundamental advancement in industrial lighting technology. By combining industry-leading 190lm/W efficiency, intelligent switchable power management, premium aluminum construction, and professional-grade reliability, this fixture addresses every limitation of metal halide lighting while delivering rapid return on investment.
Whether you're managing a warehouse requiring cost optimization, a manufacturing facility demanding superior light quality, a sports complex needing flexible lighting control, or any industrial space operating metal halide systems, this UFO Highbay provides the most effective upgrade path. The combination of immediate energy savings (56%+ reduction), extended maintenance intervals (50,000-hour lifespan), and enhanced workplace safety makes this a sound capital investment with measurable financial returns within 18-24 months.
For facility managers, lighting directors, and business owners evaluating industrial lighting upgrades, the Switchable 3Power UFO Highbay LED should be the primary consideration. The technical specifications, third-party certifications, proven reliability, and superior economics make this the rational choice for modern industrial facilities.
